Used to connect the electrodes in myoelectric systems to a:9E169 Coaxial Plug13E205 MyoRotronic9E369/9E370 4-in -1 LS Controller or 9E420 7-in-1 Controller13E190 Distributor or 10S7 Electric Wrist Rotator

The MyoEnergy Integral 757B35=* is an integrated power supply system made up of several components. The charging receptacle enables battery contact, indicates the current charge status and serves to switch the prosthesis on and off and release it in an emergency. The communication cable with a 3-pin receptacle is used for the exchange of data. The supply cable establishes the connection between the battery and the respective prosthesis component. The battery consists of two cells with different capacities.Includes:Battery Lamination DummyCharging Receptacle Lamination DummyDrilling Template for Charging ReceptacleCharger must be ordered separately - 757L35 MyoCharge Integral

10A40 Wrist Connector is used for connecting the passive inner hand with the forearm socket. It has a wooden body and a plastic M12x1.5 threaded stud.Wood can be shaped to fit the contour of the passive hand

The Friction Wrist Unit comes with interior thread (M12x1.5) and a cylindrical lamination ring.

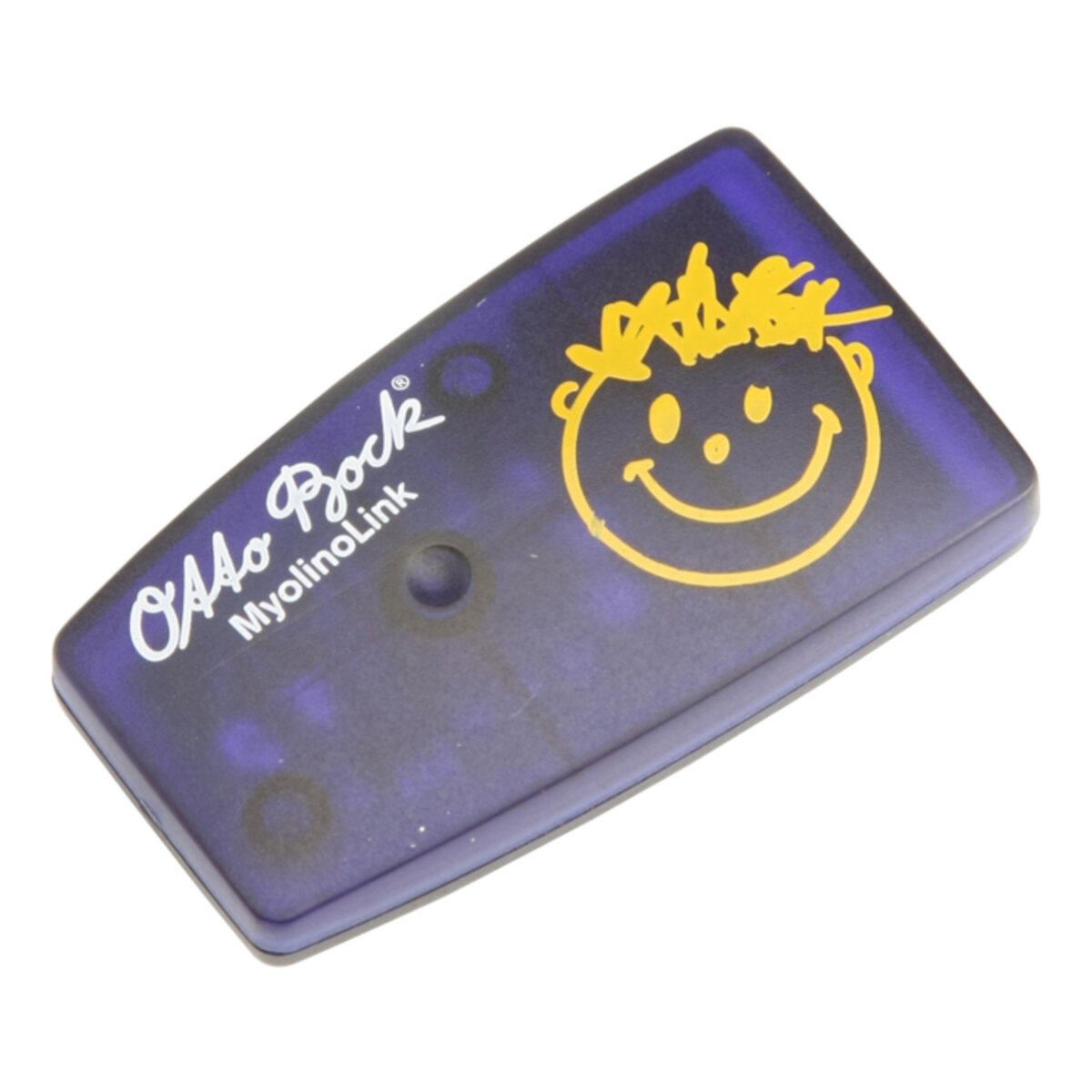

The 60X6 MyolinoLink is used for wireless transfer of data between the 7in1 Controller and a PC with Bluetooth functionality. Removing the need to disassemble the prosthesis allows patient-specific settings to be changed without a cable connection. The MyolinoLink provides:Wireless data transfer from 9E420 7in1 Controller and Bluetooth enabled PCAbility to program patient-specific controller settings using 560X3 MyolinoSoftLEDs that illuminate to signal operational readiness and flash to indicate data exchangeCharging capability through 757B25=1 or 757B35=* MyoEnergy IntegralCompatibility with 12K12 Friction Elbow, 8E51 Electric Hand 2000 and 7.4 Volt Upper Limb Prosthetic Systems for Children

The 9E420 7in1 Controller is a control system with 7.4 Volt for the Electric Hand 2000 that processes muscle signals and sends them to the prosthetic hand.The 7in1 Controller provides 7 programs, some of which have been adopted from the adult system. Children can benefit from the range of possibilities offered by systems for adults, their prosthetic hand can be adapted more individually and they are simultaneously prepared for a subsequent fitting with the adult system.Numerous Control Programs. Seven program modes can be used to ideally adjust to the patient's needs.DMC Plus: Control with 2 electrodesDMC Low Input: Control with 2 electrodesAutoControl Low Input: Control with 2 electrodesDigital Control: Control with 2 electrodesVarioControl: Control with 1 electrodeDouble Channel: Control with 1 electrodeEVO Digital: Control with 1 electrodePower is supplied to the 7in1 Controller and the prosthetic components by the 757B25=1 or 757B35=* MyoEnergy Integral.

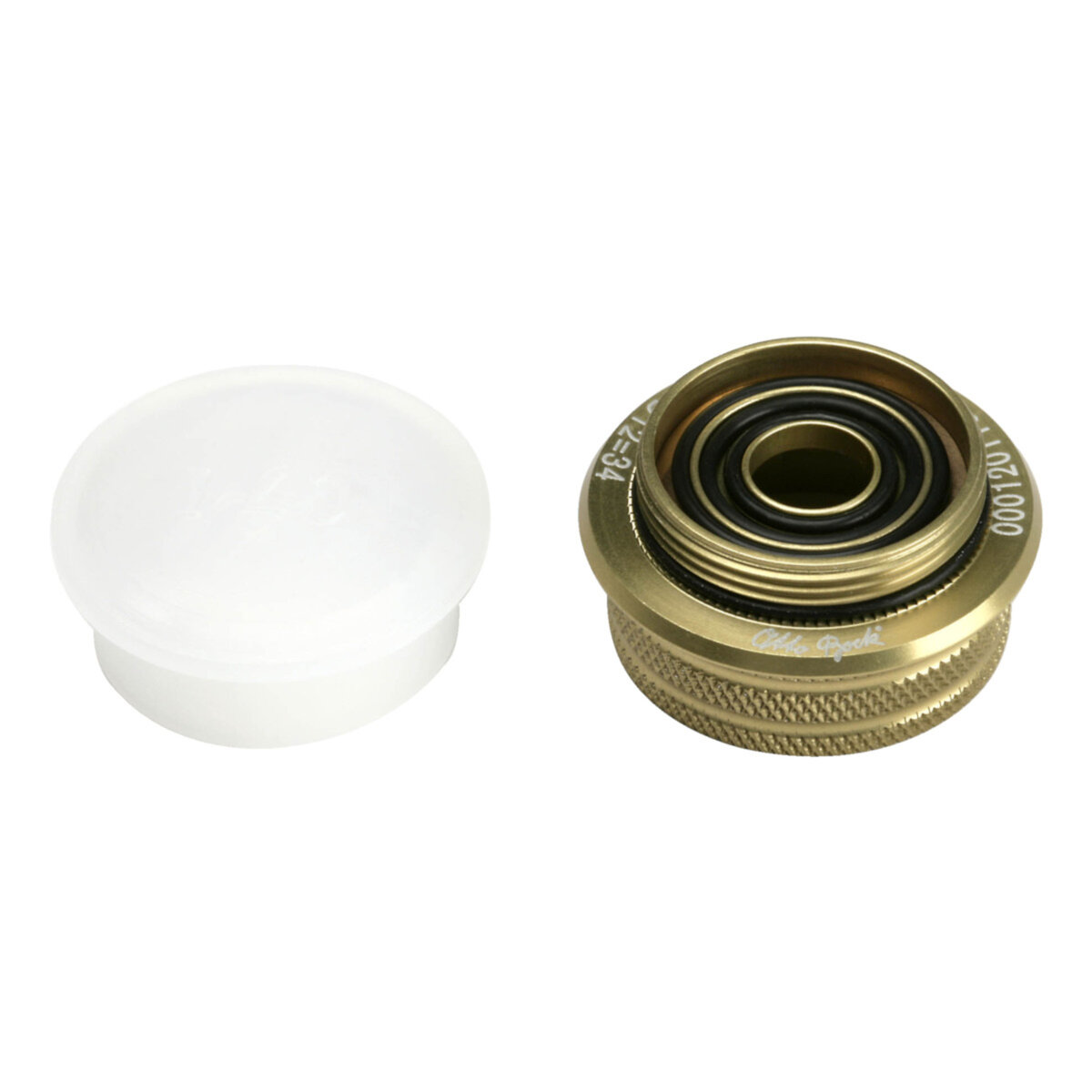

11D12=34 Lamination Ring is a wrist unit used to connection the MovolinoArm Friction Elbow with the children’s 8E51 Electric Hand 2000. Includes:Copper Friction RingO-RingsProtective Cover

The Cable Plug (plug connector) is an accessory to the Electrode Cable, used to connect electrodes in myoelectric systems.

Movo exoskeletal wrist unit with friction for incorporation into body powered prosthesis. Friction wrist with ½”-20 internal thread and cylindrical lamination ring Three diameters; 34 mm, 45 mm, 50 mm
