Used to connect the electrodes in myoelectric systems to a:9E169 Coaxial Plug13E205 MyoRotronic9E369/9E370 4-in -1 LS Controller or 9E420 7-in-1 Controller13E190 Distributor or 10S7 Electric Wrist Rotator

The 12V10 suction socket valve allows air to escape from the prosthesis when the residual limb moves within the socket, but prevents air from entering.Used in conjunction with the 13E202 Suction Socket Electrode, the 12V10 Valve:Keeps air out and prevents moisture from leaving the pull-in tubeUses standard pull-in tubes and can be retrofit into existing prosthesisProvides an airtight seal between the inner and outer socket preventing damageCreates optimal linkage between the residual limb and socket by creating a vacuum effect in the suction socket

The Electrode Lamination Accessories for 13E202 Suction Socket Electrode includes lamination dummies for socket and outershell, socket screws, socket washers and sensitivity adjustment tool.Includes:13E203 Lamination Template for Inner Socket13E204 Lamination template for Outer Socket507S15 Lamination Disk, serrated503F3 Socket Screw with Allen head13E80 Sensitivity Adjustment Tool

The Silicone Outer Ring is an accessory to the Suction Socket Electrode.

The Sensitivity Adjustment Tool is an accessory to the Suction Socket Electrode.

The Electrode Bracket Set is for positioning and assembling the MyoBock Electrodes in the interim plaster socket or the interim socket of Thermolyn (616T52 or 616T53). It is used with 13E200 electrodes.

bebionic Hand EQD

By ottobock

This page is for the bebionic hand ONLY. In order to fully fabricate, practitioners will need to also purchase the following options: Wrist rotation option: Active (1E205, 10S17); Passive (9E169, 10S4) Myo electrodes option: Suction (13E202=60) or Standard (13E200=60) Myo cables: 600mm (13E129=600) or 300mm (13E129=300) MyoEnergy Integral battery: Small hands with passive rotation (757B35=3). Any size with active rotation (757B35=5) MyoCharge Integral charger: (757L35) Optional extended warranty: 3yr (SP-8E7=3) or 5yr (SP-8E7=5) Bluetooth Long Range Dongle: B33061 (Optional) The bebionic hand EQD (quick-disconnect wrist unit) is a myoelectric prosthesis featuring 14 selectable grip patterns. The bebionic multi-articulating prosthetic hand gives upper limb amputees precision control over fine motor tasks. The bebionic hand comes with a 24-month warranty at no additional cost, options to extend the warranty up to 5 years, and clinical and reimbursement support. Small hand is available in black or white finish Medium hand is available in black finish Bluetooth module now in both small and medium hands. You now only need one Bluetooth adapter (dongle) to easily connect to bebalance+ New bebalance+ V1.4 software with improved usability Improved cable guidance to secure thumb in opposition or lateral position Quick Disconnect now provides a more secure connection to the socket PDAC Approved

The 12K110N DynamicArm Plus elbow joint is myoelectrically-controlled and driven by an electric motor. It is intended for fitting users with transhumeral or higher amputation levels or users with more than 2 original signals. The DynamicArm Plus has the same features as the DynamicArm standard. In addition, it can also process up to 8 input signals. Other prosthesis components can not be used.DynamicArm Plus is suitable for combination with other myoelectric prosthetic components such as:10S17 Electric Wrist Rotator8E38=8* SensorHand Speed8E38=9* MyoHand VariPlus Speed8E33=9 System Electric Greifer DMC VariPlusScope of delivery:DynamicArm Plus 12K110N*Dummy for electric wrist rotatorBattery charger with EU and US plugLamination ringAssembly hookAlignment tool2 Year Manufacturer's WarrantyOptional items ordered separately:Coaxial plug or Electric wrist rotatorInput device & cables3rd Year Extended Warranty: DynamicArm Plus SP-12K110N=3

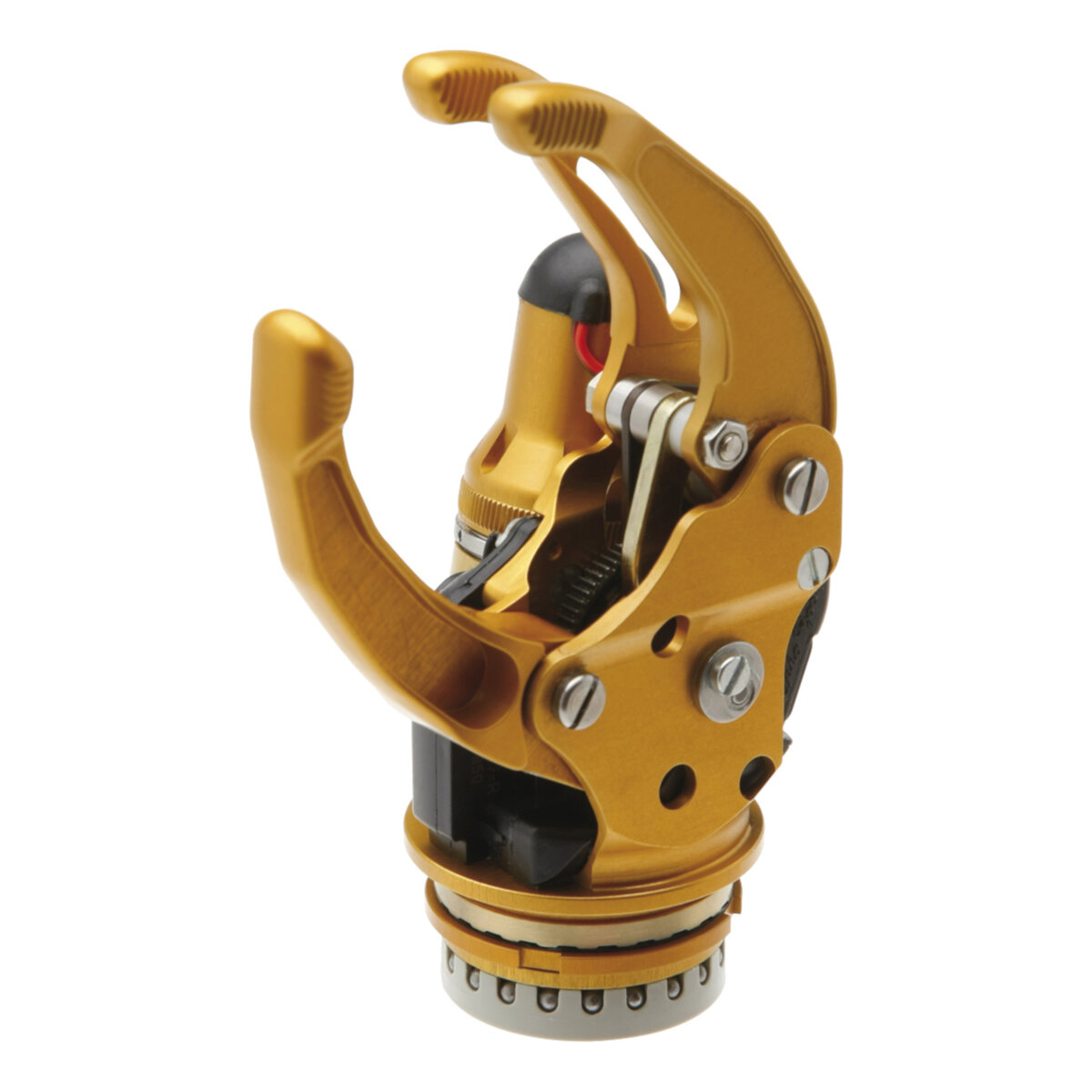

The System Electric Hand DMC Plus is suitable for all amputation levels except wrist disarticulation. It features a DMC and DMC plus control mode. The desired control mode is selected with the integrated 13E185 Function Plug. In DMC plus control mode, after gripping once with maximum grip force, a higher signal is required to open the hand. This reduces the risk of opening the hand with undesired muscle signals. In this system, two independent measurement and control systems proportionally control gripping speed as well as gripping force. Gripping speed and gripping force are determined by the strength of the muscle signal. It is designed for those who don’t utilize the AutoGrasp function. It features a central coaxial plug connection, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.Can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePackSpecifically designed for adolescents or women with small handsDynamic Mode Control (DMC) plus control system offers additional security for user and is engaged by removing a function plugThree power supply alternatives accommodate variable residual limb shapesPassive wrist rotation with ratchet lock (can be replaced by the 11S30 Friction RingThe electrodes must be adjusted with the 757M11 MyoBoy

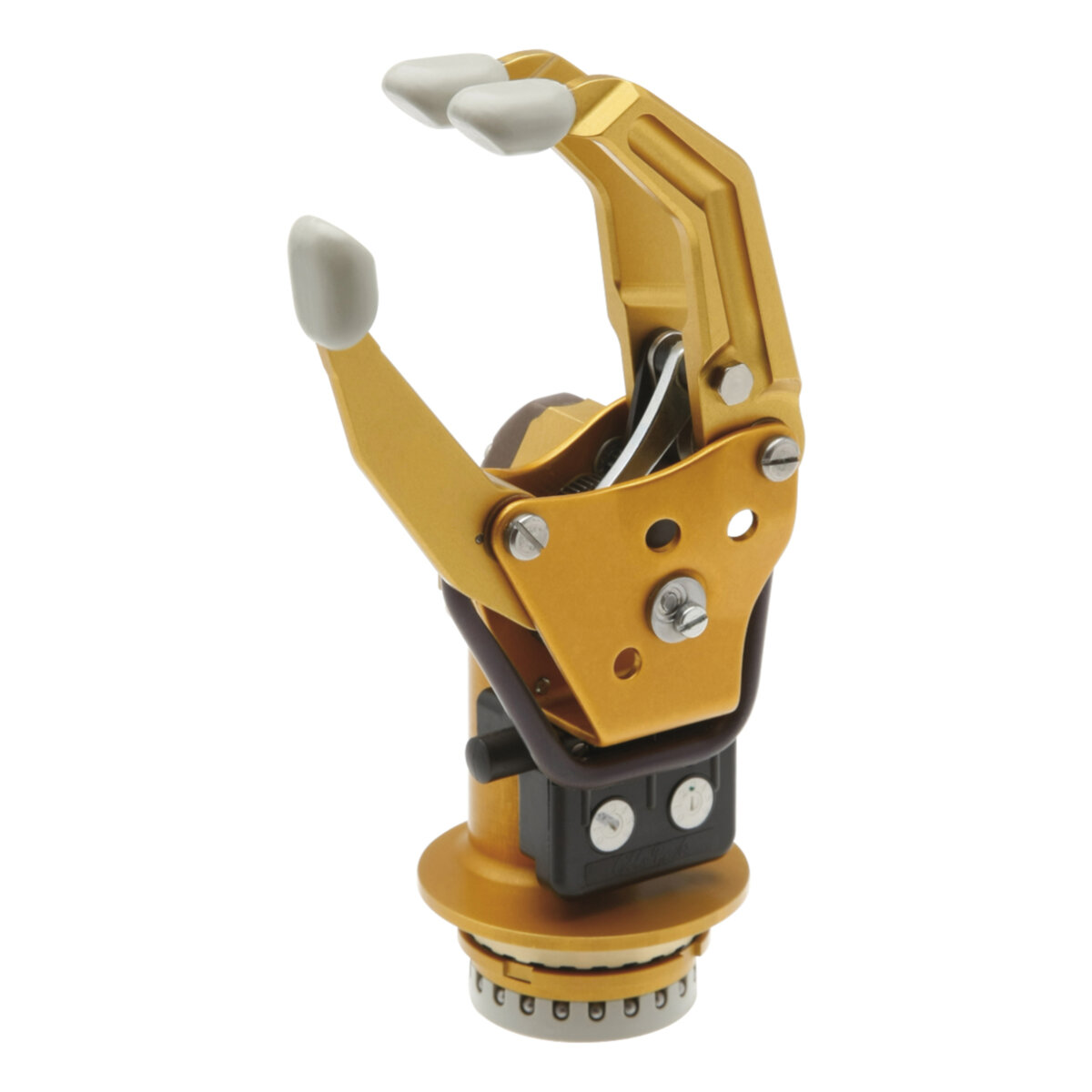

The System Electric Hand Digital Twin with Quick Disconnect Wrist is suitable for all amputation levels, except wrist disarticulation. The Digital Twin control features a digital and dual channel control mode. The desired control mode is selected with the integrated 13E185 function plug. The hand features a central coaxial plug connection, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. With potentiometer for adjusting the switching threshold (double-channel control). An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.Can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePackProvides passive wrist rotation with ratchet lock (can be replaced by the 11S30 Friction Ring)

The SensorHand Speed with quick-disconnect wrist is suitable for all amputation levels, except wrist disarticulation. This hand features the automatic Auto-Grasp SUVA sensor technology, the FlexiGrip function, as well as different control modes for the fitting with one or two electrodes. It features a central coaxial plug connection, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.Gives passive wrist rotation with ratchet lock (can be replaced with the 11S30 Friction Ring)Electrode(s) must be adjusted with the 757M11 MyoBoy13E184=* Coding Plugs of various colours or the 757T13 MyoSelect are used to select the desired control mode. Please also note the table in the user manual for this13E184=1 (White: DMC plus® control)13E184=2 (Red: AutoControl LowInput control)13E184=3 (Green: AutoControl)13E184=4 (Blue: VarioControl)13E184=5 (Yellow: VarioDual Control)13E184=6 (Violet: DMC plus® Control SUVA sensors and FlexiGrip can be switched off)Can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack

The MyoHand VariPlus Speed with quick disconnect wrist is suitable for all amputation levels except wrist disarticulation. It combines the mechanical characteristics of the SensorHand Speed and the control options of the DMC VariPlus System Electric Greifer. The high gripping strength (approx. 100 N) and speed (up to 300 mm/s), allow objects can be gripped quickly and precisely. The hand comes with a central coaxial plug connection, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.Can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePackWith the 757T13 MyoSelect, a total of 6 different programs can be selected and adapted according to patient indications, for optimum adaptationThe following control modes can be selected with the 757T13 MyoSelect:DMC plusAutoControl LowInputVarioControlVarioDualDigitalControlDoubleChannel Control

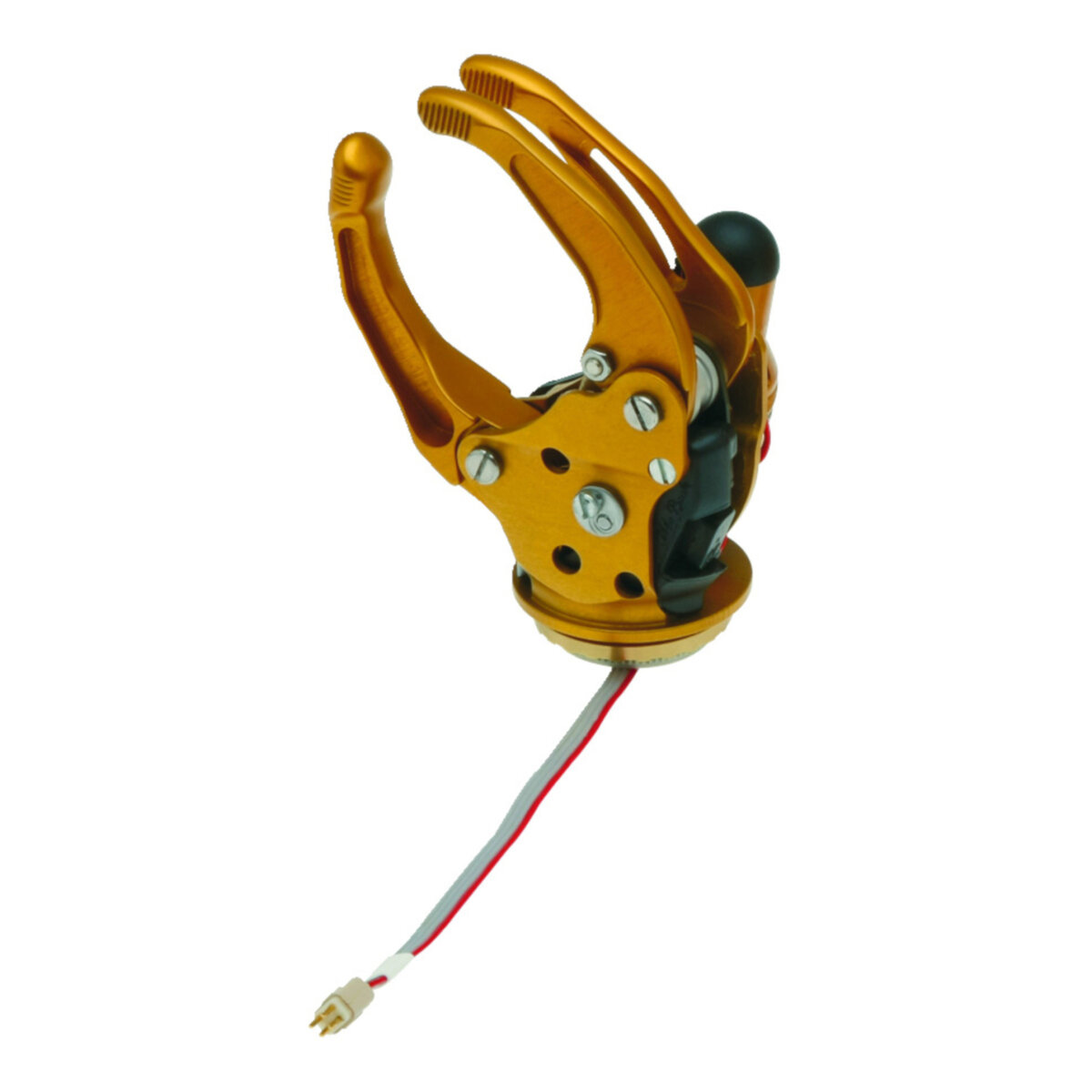

The System Electric Hand Digital Twin has a lamination ring suitable for wrist disarticulation. It features a centrally guided flat cable with automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. This hand has a potentiometer for adjusting the switching threshold (double-channel control), and an integrated slip clutch that allows the hand to be opened in case of power supply or myoelectric control failure.Gives passive wrist rotation with frictionFeatures a digital and dual channel control mode (desired control selected with integrated 13E185 function plug)Can be operated with the 757B35=* MyoEnergy Integral, 757B20/757B21 EnergyPack or the 757B15 X-ChangePack

SensorHand Speed with lamination ring wrist connection suitable for wrist disarticulation. Passive wrist rotation with friction. The SensorHand Speed features the automatic Auto-Grasp SUVA sensor technology, the FlexiGrip function as well as different control modes for the fitting with one or two electrodes. 13E184=* Coding Plugs of various colors or the 757T13 MyoSelect are used to select the desired control mode.13E184=1 (White: DMC plus control)13E184=2 (Red: AutoControl LowInput control)13E184=3 (Green: AutoControl)13E184=4 (Blue: VarioControl)13E184=5 (Yellow: VarioDual Control)13E184=6 (Violet: DMC plus Control SUVA sensors and FlexiGrip can be switched off)The SensorHand Speed can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack. It features a central flat cable, automatic shut-off electronics and integrated on-off switch, low friction bevel gear, positive back lock, and System Inner Hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.

MyoHand VariPlus Speed with lamination ring wrist connection is suitable for wrist disarticulation. It combines the mechanical characteristics of the SensorHand Speed and the control options of the DMC VariPlus System Electric Greifer. Thanks to the high gripping strength (approx. 100 N) and speed (up to 300 mm/s), objects can be gripped quickly and precisely. With the 757T13 MyoSelect, a total of 6 different programs can be selected and adapted according to patient indications. This permits optimum adaptation to the needs and abilities of the prosthesis wearer. The following control modes can be selected with the 757T13 MyoSelect: DMC plus AutoControl LowInput VarioControl VarioDual DigitalControl DoubleChannel Control The MyoHand VariPlus Speed can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack. With central coaxial plug connection, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.

The MyoHand VariPlus Speed with threaded stud wrist connection is suitable for all amputation levels except wrist disarticulation. It combines the mechanical characteristics of the SensorHand Speed and the control options of the DMC VariPlus System Electric Greifer. Thanks to the high gripping strength (approx. 100 N) and speed (up to 300 mm/s), objects can be gripped quickly and precisely. This hand has a central coaxial plug connection, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure. With the 757T13 MyoSelect, a total of 6 different programs can be selected and adapted according to patient indications. This permits optimum adaptation to the needs and abilities of the prosthesis wearer.The MyoHand VariPlus Speed can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePackThe following control modes can be selected with the 757T13 MyoSelect:DMC plusAutoControl LowInputVarioControlVarioDualDigitalControlDoubleChannel Control

bebionic Hand with Flexion Wrist

By ottobock

This page is for the bebionic hand with flexion wrist ONLY. In order to fully fabricate, practitioners will need to also purchase the following options: Wrist rotation option: Active (1E205, 10S17); Passive (9E169, 10S4) Myo electrodes option: Suction (13E202=60) or Standard (13E200=60) Myo cables: 600mm (13E129=600) or 300mm (13E129=300) MyoEnergy Integral battery: Small hands with passive rotation (757B35=3), Any size with active rotation (757B35=5) MyoCharge Integral charger: (757L35) Optional extended warranty: 3yr (SP-8E7=3) or 5yr (SP-8E7=5) Bluetooth Long Range Dongle: B33061 (Optional) PDAC Approved The flexion wrist allows the patient to position the hand in five locking levels of flexion and extension from -40° to +40° in 20° increments. The bebionic hand comes with a 24-month warranty at no additional cost, options to extend the warranty up to 5 years, and clinical and reimbursement support. Small hand is available in black or white finish Medium hand is available in black finish Bluetooth module now in both small and medium hands. You now only need one Bluetooth adapter (dongle) to easily connect to bebalance+ New bebalance+ V1.4 software with improved usability Improved cable guidance to secure thumb in opposition or lateral position

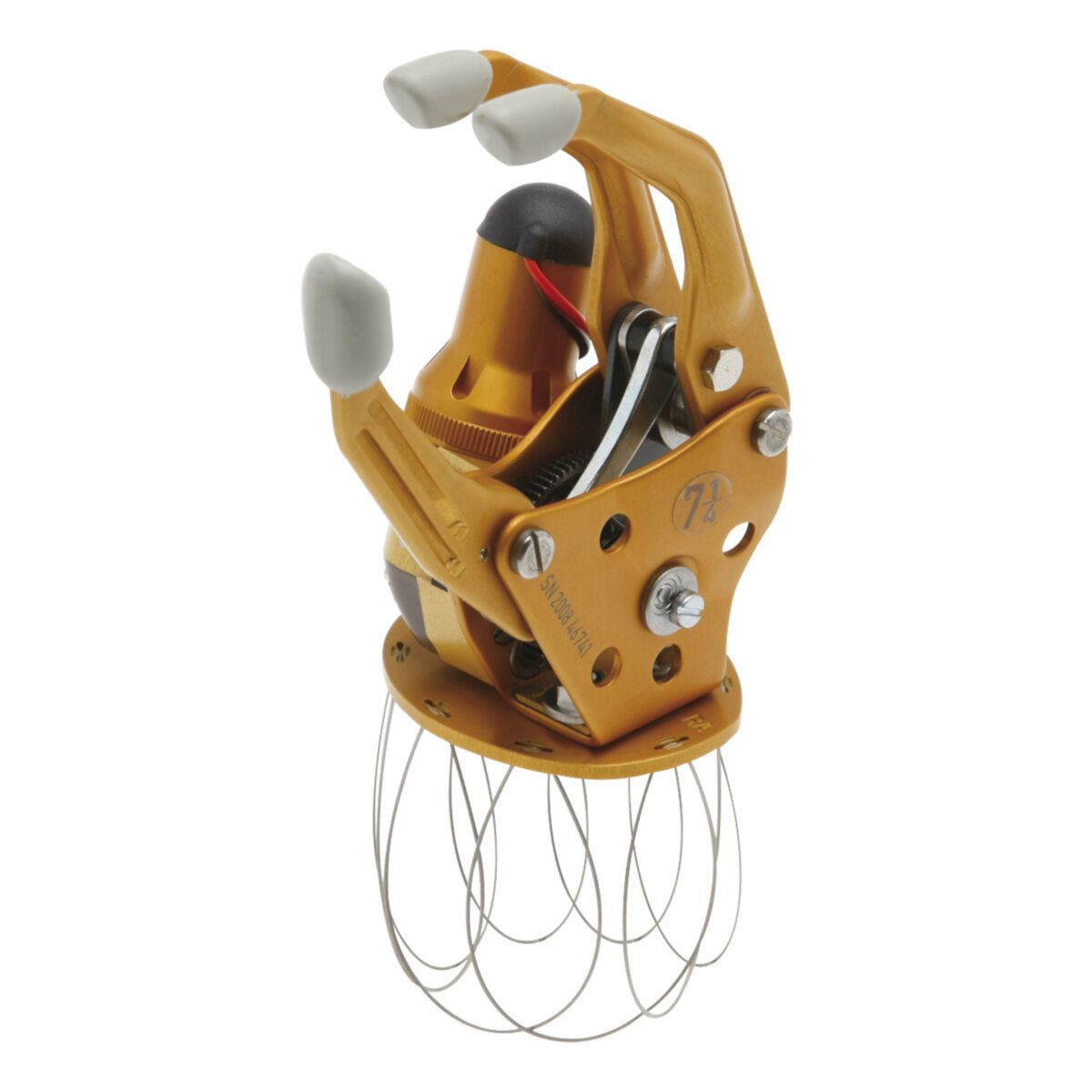

The Transcarpal Hand DMC (Dynamic Mode Control) Plus utilizes cable lamination anchors to maintain a minimum build height, the Transcarpal Hand DMC plus provides a compact myoelectric option for fitting residual limb lengths from wrist disarticulation to transcarpal levels. This hand provides proportional control of grip speed and grip force in relation to the strength of the muscle signal. It features a centrally guided flat cable, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.Can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePackMinimal clearance requiredVariable grip speed ranges from 15-130 mm/secCable Loops in lieu of lamination ring provide flexibility in fabrication30% lighter and 30% shorter than a standard 8E38 hand for longer amputationsNo wrist rotation: patient must be able to actively pronate and supinate the hand

The Transcarpal Hand DMC (Dynamic Mode Control) Plus utilizes cable lamination anchors to maintain a minimum build height, the Transcarpal Hand DMC plus provides a compact myoelectric option for fitting residual limb lengths from wrist disarticulation to transcarpal levels. This hand provides proportional control of grip speed and grip force in relation to the strength of the muscle signal. It features a centrally guided flat cable, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.Can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePackMinimal clearance requiredVariable grip speed ranges from 15-130 mm/secCable Loops in lieu of lamination ring provide flexibility in fabrication30% lighter and 30% shorter than a standard 8E38 hand for longer amputationsNo wrist rotation: patient must be able to actively pronate and supinate the hand

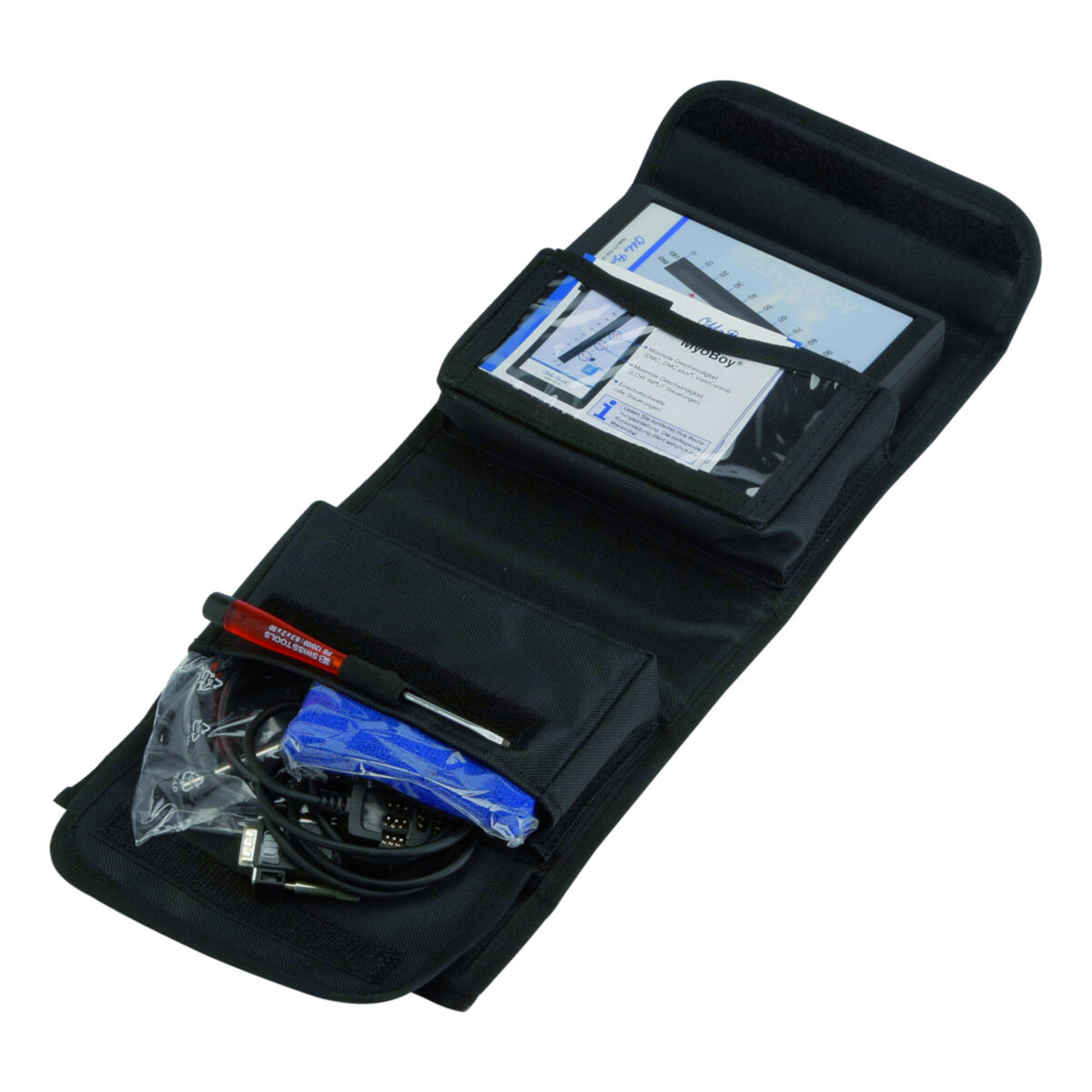

The 757M11 MyoBoy system enables you to:Measure your patient’s muscle strength and adjust the electrodes as requiredTrain your patient on controlling their prosthetic handUtilize the indication assistant to determine the right MyoBock system for your patientDocument and analyze progress using the Communication Cable 757P39Order 1000 mm cable (13E129=G1000) and electrodes (13E200 or 13E202) separatelyScope of delivery:757G265=1 Quick Reference Guide757Z18 Grounding Cable757P44 Electrode Adapter757Z174 Electrode ArmbandScrewdriverUSB CableCarrying CaseOptional:757P23 Test Adapter757P39 MyoBoy Communication Cable1000 mm cable (13E129=G1000) and electrodes (13E200 or 13E202) must be ordered separately. The 757M11 MyoBoy is a device for practitioners to utilize in training upper extremity patients to control a prosthetic hand and train their muscles. The MyoBoy measures muscle strength and adjusts the electrodes to the patient’s unique needs. It is a comprehensive software system used to train patients in controlling terminal device as well as train muscles.

The Electrohand 2000 is a children's electric hand system that can be used for ages 1 1/2 to 13 years old and is suitable for virtually all levels of amputation. The thumb and fingers rotate around the same axis, thereby executing a more compact rotation. Depending on the controller, it can be used for 4.8 V and 7.4 V in children’s hand fittings. It has passive hand rotation and centralized friction contact.Includes 9E347=* finger filler but does not include cosmetic glove (8S20*), controller (9E420*, 9E369 or 9E370) or lamination ring (10S16=*)In combination with the MyolinoWrist 2000 ball wrist joint with adjustable friction, the Electric Hand 2000 can be positioned in all directionsCompensating movements of the arm are largely avoidedMovement patterns and the body posture appear more naturalIntelligent Battery Management

bebionic Hand with Short Wrist

By ottobock

This page is for the bebionic hand with short wrist ONLY. In order to fully fabricate, practitioners will need to also purchase the following options: Wrist rotation option: Active (1E205, 10S17); Passive (9E169, 10S4) Myo electrodes option: Suction (13E202=60) or Standard (13E200=60) Myo cables: 600mm (13E129=600) or 300mm (13E129=300) MyoEnergy Integral battery: Small hands with passive rotation (757B35=3), Any size with active rotation (757B35=5) MyoCharge Integral charger: (757L35) Optional extended warranty: 3yr (SP-8E7=3) or 5yr (SP-8E7=5) Bluetooth Long Range Dongle: B33061 (Optional) The bebionic Short Wrist consists of a low-profile connector for patients with a long residual limb. A short wrist lamination ring is also supplied with these hands. With this wrist option, the patient still maintains a high degree of freedom since the hand rotates against constant yet adjustable friction. The bebionic hand comes with a 24-month warranty at no additional cost, options to extend the warranty up to 5 years, and clinical and reimbursement support. Small hand is available in black or white finish Medium hand is available in black finish Bluetooth module now in both small and medium hands. You now only need one Bluetooth adapter (dongle) to easily connect to bebalance+ New bebalance+ V1.4 software with improved usability Improved cable guidance to secure thumb in opposition or lateral position PDAC Approved
