Used to connect the electrodes in myoelectric systems to a:9E169 Coaxial Plug13E205 MyoRotronic9E369/9E370 4-in -1 LS Controller or 9E420 7-in-1 Controller13E190 Distributor or 10S7 Electric Wrist Rotator

Lamination ring for System Electric Hands or System Electric Greifers with lamination protection cover for bonding.

The 13E200 Myobock Electrode lessens sensitivity to low and high frequency interferences to minimize prostheses operation interruption and provide noise filtration.

Electrode cable connection with IDC termination, with 13E206 Electrode Accessories, without electrode cable. Creates an airtight seal between the inner socket and outer socket when embedded into a mounting suspension of elastic material. The Suction Socket Electrode also prevents sweat from penetrating between the outer and inner socket, preventing damage to the electrical and mechanical components caused by corrosion.The Suction Socket Electrode can not only be used for standard fittings, but is also suitable for application in suction sockets. Combining the suction socket electrode with a 12V10 Tube Valve for a suction socket creates a vacuum effect in the socket, ensuring optimal linkage between the residual limb and the socket.Shielding and filtering technologies largely protect the 13E202 Suction Socket Electrode against high frequency interference caused by cell phones, walkie-talkies, computers or anti-theft systems in shopping centers so that the correct function of the myoelectrically controlled prosthesis is not affected. The electrode contacts are made from pure titanium and are suitable for people with allergies.Includes:(1) 13E200 electrode(1) 13E80 adjustment tool(1) 13E191 casting template for inner socket(1) 13E192 lamination template(2) 507S15 lamination plate with bore(1) 13E201 electrode accessories for vacuum-formed inner sockets(2) 503F3 socket screw with Allen headThe following products are also required:13E129=* electrode cable

The MyoEnergy Integral 757B35=* is an integrated power supply system made up of several components. The charging receptacle enables battery contact, indicates the current charge status and serves to switch the prosthesis on and off and release it in an emergency. The communication cable with a 3-pin receptacle is used for the exchange of data. The supply cable establishes the connection between the battery and the respective prosthesis component. The battery consists of two cells with different capacities.Includes:Battery Lamination DummyCharging Receptacle Lamination DummyDrilling Template for Charging ReceptacleCharger must be ordered separately - 757L35 MyoCharge Integral

Battery cable for 757B20 and 757B21 series batteries.For connecting the 757Z185=1 or 757Z191=1 Battery Receptacle to 9E169 Coaxial Plug, 10S17 Electric Wrist Rotator or 13E205 MyoRotronic or the 13E190 or 13E190=150 distributor.Available in two lengths: 200 mm (13E188=200) or 600 mm (13E188=600)

757L20 Lithium-Ion Battery Charger provides:Simultaneous charging of one or two 757B20/757B21 EnergyPack batteries100 – 240 (automatic adjustment) V/ACFull charging of 757B20 in approximately 3.5 hoursFull charging of 757B21 in approximately 3.0 hoursThe case is made of impact-resistant plastic materialScope of delivery includes:ChargerIncludes 757L16-4 Main Adapter with interchangeable EU and US plugsThe 4X74 car adapter cable can be ordered separately

Used to fit both long and short residual limbs in combination with the 8E44 Transcarpal Hand (not included). The Endoskeletal Adapter allows the use of the Transcarpal Hand as a particularly short and lightweight prosthetic hand with quick-disconnect mechanism for fitting of both long and short residual limbs. The shortest version of the Transcarpal Hand with the quick-disconnect mechanism of the Endoskeletal Adapter is as short as 145 mm. The Endoskeletal Adapter is an accessory for the System Electric Greifer Digital Twin.

757B20 EnergyPacks are:Available in colors: 4 (757B20, 757B21), 11 (757B20-1, 757B21-1), 15 (757B20-2, 757B21-2) and Black (757B20-3, 757B21-3)Appropriate for more active patients and SensorHand Speed usersTo be used only for MyoBock Adult SystemsDesigned utilizing Lithiom-Ion technology for longer life than NiCd batteryCapable of integration into almost all socket shapes including long residual limbsFor MyoBock System, 6/7.2 Volt,For integration into all socket shapes, even in cases of long residual limbs. Compared to NiCd battery, these batteries have a lower self-discharge level, higher cell voltage and greater capacity. They have no memory effect.

The 757Z184=* battery mounting set is used to fabricate a battery receptacle into either a laminated outershell or an Ottobock elbow unit, such as an ErgoArm elbow. The 757Z184=* battery mounting set is designed for large size 757B20 lithium-ion myo batteries and is available in two versions:Standard version:Available in four colors (4, 11, 15 and black)Does not connect to MyoBoyUses 13E188=200 or 13E188=600 battery cablesOnce installed it is not removable from prosthesisMyoBoy version:Available in color 4 onlyIncludes integrated screw connection for removing the battery box from the prosthesisIncludes external capped outlet for connection to MyoBoy deviceUses 757P41 cable for connection to battery box and 9E169 coaxial plug or 13E205 MyoRotronic and 757P41 cable for 757P39 MyoBoy connection cable

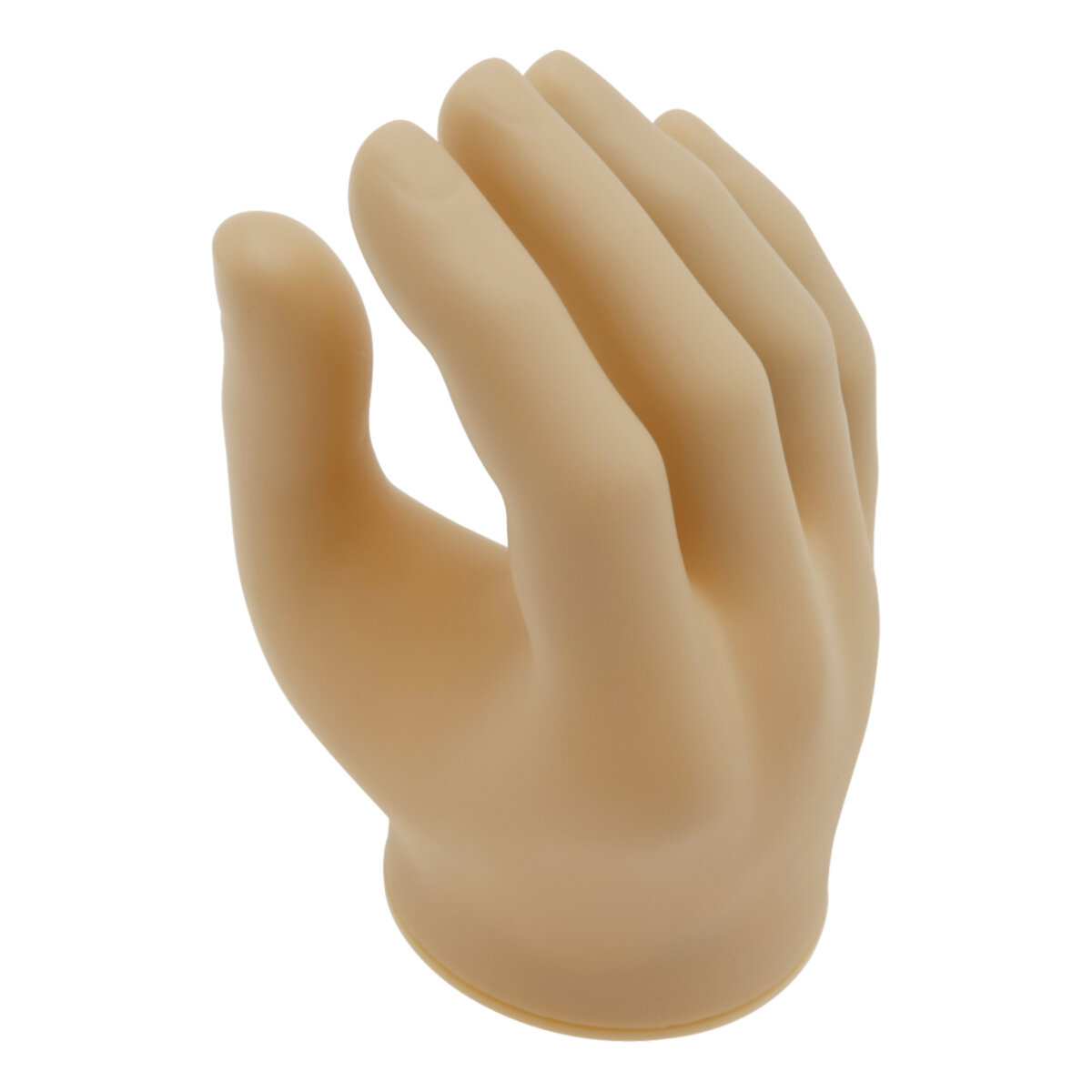

The System Inner hand shell is for transcarpal myoelectric hands. It has a lightweight plastic design, and the shell is designed to slide over the finger unit of myo hands.
